Model averaging methods: how and why to build ensemble models

R Data science

Averaging predictions for fun and profit – and for dealing with the uncertainty of model selection. With examples in R!

Mike Mahoney true
01-18-2021

Introduction

Building models is hard. Choosing what models to build can be even harder. With seemingly infinite different modeling approaches to select between (and somehow even more individual implementations), it can be difficult to guess what methods will be the best fit for your data – particularly if you’re working with data that will change over time with new observations or predictors being added to the mix.

Usually, we disclose this sort of uncertainty with things like confidence intervals and standard errors. Yet when it comes to selecting a single model, we often don’t discuss how confident we are in that model being the right one – instead, we present and report only our final choice as if there was no chance other candidate models would be as good or even better fits.

Ensemble models prove a way to deal with that uncertainty (Wintle et al. 2003). By averaging predictions from a handful of candidate models, ensembles acknowledge that there might be multiple models that could be used to describe our data – and by weighting the average we can communicate how confident we are in each individual model’s view of the world. Of course, while this is all nice and flowery, it needs to work too – and model averaging delivers, typically reducing prediction errors beyond even above even the best individual component model (Dormann et al. 2018).

There are a ton of approaches to model averaging1. The rest of this post will walk through a few of the simplest – equal-weight averaging, fit-based averages, and model-based combinations – that you can easily implement yourself without needing to worry about slowing down your iteration time or making your modeling code too complex.

Getting Started

We’ll be using the following libraries for data manipulation and visualization:

Additionally, we’ll be using both ranger and lightgbm to develop component models:

And finally, we need the actual data we’re modeling. For this example, we’ll build models predicting the arrival delay of the flights included in the nycflights13 package using both flight details and weather data. This next chunk of code will preprocess our data into a model-ready format:

flights <- nycflights13::flights
weather <- nycflights13::weather %>%
  select(-wind_gust) # About 80% missing values, so we'll drop this column

# combine the two data frames into one complete set
flight_data <- flights %>%
  left_join(weather,
            by = c("year", "month", "day", "origin", "hour", "time_hour")) %>%
  drop_na()

flight_data <- flight_data %>%
  # Drop 37 pretty dramatic outliers
  filter(arr_delay <= 500) %>%
  # Get rid of useless predictors --
  # these each cause problems with at least one of our regressions
  select(-year, -time_hour, -minute) %>%
  # Skip the work of encoding non-numeric values, to save my poor laptop
  select_if(is.numeric)

And for one final pre-processing step, we’ll split our data into training, validation, and testing sets (sticking 20% into both validation and testing and dumping the rest into training). We’ll be using model performance against the validation set to determine weights for our averages.

set.seed(123)
# Generate a random sequence to subset our data into train/validate/test splits
row_index <- sample(nrow(flight_data), nrow(flight_data))

# Testing gets the 20% of data with the highest random index values
flight_testing <- flight_data[row_index >= nrow(flight_data) * 0.8, ]

# Validation gets the next highest 20%
flight_validation <- flight_data[row_index >= nrow(flight_data) * 0.6 &
                                   row_index < nrow(flight_data) * 0.8, ]

# Training gets the rest
flight_training <- flight_data[row_index < nrow(flight_data) * 0.6, ]

# LightGBM requires matrices, rather than data frames and formulas:
xtrain <- as.matrix(select(flight_training, -arr_delay))
ytrain <- as.matrix(flight_training[["arr_delay"]])

xvalid <- as.matrix(select(flight_validation, -arr_delay))
xtest <- as.matrix(select(flight_testing, -arr_delay))

So with that out of the way, it’s time to start training our models!

Component Models

Linear Model

Let’s start off with a simple linear regression model, using all of our predictors in the flight dataset to try and estimate arrival delays:

linear_model <- lm(arr_delay ~ ., flight_training)
summary(linear_model)

Call:
lm(formula = arr_delay ~ ., data = flight_training)

Residuals:
    Min      1Q  Median      3Q     Max
-58.895  -9.133  -1.538   7.076 159.388

Coefficients:
                 Estimate Std. Error  t value Pr(>|t|)
(Intercept)    -4.613e+00  5.992e+00   -0.770 0.441394
month           3.825e-02  1.117e-02    3.424 0.000618 ***
day             2.220e-02  4.109e-03    5.404 6.51e-08 ***
dep_time        9.509e-05  2.795e-04    0.340 0.733722
sched_dep_time -3.492e-03  1.894e-03   -1.844 0.065257 .
dep_delay       1.013e+00  1.068e-03  948.332  < 2e-16 ***
arr_time        8.816e-04  1.182e-04    7.460 8.68e-14 ***
sched_arr_time -4.713e-03  1.478e-04  -31.884  < 2e-16 ***
flight         -4.692e-05  2.541e-05   -1.846 0.064863 .
air_time        7.563e-01  3.074e-03  246.006  < 2e-16 ***
distance       -9.792e-02  3.925e-04 -249.500  < 2e-16 ***
hour            6.000e-01  1.871e-01    3.207 0.001341 **
temp            1.173e-01  2.232e-02    5.254 1.49e-07 ***
dewp            3.632e-02  2.405e-02    1.510 0.130928
humid           1.860e-02  1.229e-02    1.514 0.130053
wind_dir       -6.076e-03  4.009e-04  -15.158  < 2e-16 ***
wind_speed      1.920e-01  7.538e-03   25.471  < 2e-16 ***
precip          2.688e+01  3.014e+00    8.920  < 2e-16 ***
pressure       -1.634e-02  5.619e-03   -2.909 0.003631 **
visib          -4.603e-01  3.239e-02  -14.212  < 2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 14.82 on 170687 degrees of freedom
Multiple R-squared:  0.8707,    Adjusted R-squared:  0.8707
F-statistic: 6.048e+04 on 19 and 170687 DF,  p-value: < 2.2e-16

Cool! We have our first model – and it seems to be a pretty ok fit, with an R^2 of 0.87. We could probably make this model better by being a bit more selective with our terms or throwing in some interaction terms – but as a first stab at a model that we’ll incorporate into our average, this is pretty alright.

Of course, we want to make sure this model can generalize outside of the data it was trained with – let’s use it to make predictions against our validation set, too:

flight_validation$lm_pred <- predict(
  linear_model,
  newdata = flight_validation
)

sqrt(mean((flight_validation$lm_pred - flight_validation$arr_delay)^2))
summary(lm(arr_delay ~ lm_pred, flight_validation))$r.squared
[1] 14.73962
[1] 0.8684178

R^2 remains at about 0.87 and RMSE comes in at about 14.74 minutes – which, considering delays in the validation set range from -75 to 485 minutes, feels not too bad for a naively implemented linear model.

Random Forest

So we have our first model sorted, but we need more than that to take an average! While we could average out a number of linear models with different parameters, it feels more interesting to combine a few different algorithms as component models. So let’s use ranger to implement a random forest to represent our data – fair warning, this one takes a little while to train!

ranger_model <- ranger::ranger(arr_delay ~ ., data = flight_training)
sqrt(ranger_model$prediction.error)
ranger_model$r.squared
[1] 11.08573
[1] 0.9276561

So this model has an RMSE of 11.09 and an R^2 of 0.93 – an improvement over our linear model! While we could eke out some improvements with careful tuning, it looks like this version is a good enough fit to use as an example in our ensemble. As before, we want to check out how well this model generalizes by using it to generate predictions for our validation set:

ranger_predictions <- predict(
    ranger_model,
    data = flight_validation
  )

flight_validation$ranger_pred <- ranger_predictions$predictions

sqrt(mean((flight_validation$ranger_pred - flight_validation$arr_delay)^2))
summary(lm(arr_delay ~ ranger_pred, flight_validation))$r.squared
[1] 10.96209
[1] 0.9302306

Our model actually performs (extremely) slightly better on the validation set!

GBM

So that’s two models sorted! For completeness sake, let’s implement a third and final component model, this time using the LightGBM package to fit a gradient boosting machine. Similar to the last two, we won’t do a ton to parameterize this model – the only change I’ll make to the model fit defaults is to use 100 rounds, to let the boosting algorithm get into the same performance range as our other two models.

lightgbm_model <- lightgbm::lightgbm(xtrain,
                                     ytrain,
                                     nrounds = 100,
                                     obj = "regression",
                                     metric = "rmse",
                                     # Suppress output
                                     force_col_wise = TRUE,
                                     verbose = 0L)

The lightgbm_model doesn’t have the same easy method for evaluating in-bag performance as our linear model and random forests did. We’ll skip right to the validation set instead:

flight_validation$lightgbm_pred <- predict(
  lightgbm_model,
  xvalid
)

sqrt(mean((flight_validation$lightgbm_pred - flight_validation$arr_delay)^2))
summary(lm(arr_delay ~ lightgbm_pred, flight_validation))$r.squared
[1] 10.4088
[1] 0.9347398

So it looks like LightGBM model performs about as well (if not marginally better than) our random forest! For reference, here are the RMSE values from each of our candidate models:

prediction_values <- flight_validation %>%
  # Only select our y and y-hat columns
  select(ends_with("pred"), matches("arr_delay"))

prediction_plots <- prediction_values %>%
  pivot_longer(cols = -arr_delay) %>%
  mutate(name = regmatches(name, regexpr(".*(?=_pred)", name, perl = TRUE)),
         resid = value - arr_delay,
         name = factor(name, levels = c("lightgbm", "ranger", "lm")))

prediction_plots %>%
  group_by(Model = name) %>%
  summarise(RMSE = sqrt(mean(resid^2)), .groups = "drop") %>%
  arrange(RMSE) %>%
  knitr::kable()
Model RMSE
lightgbm 10.40880
ranger 10.96209
lm 14.73962

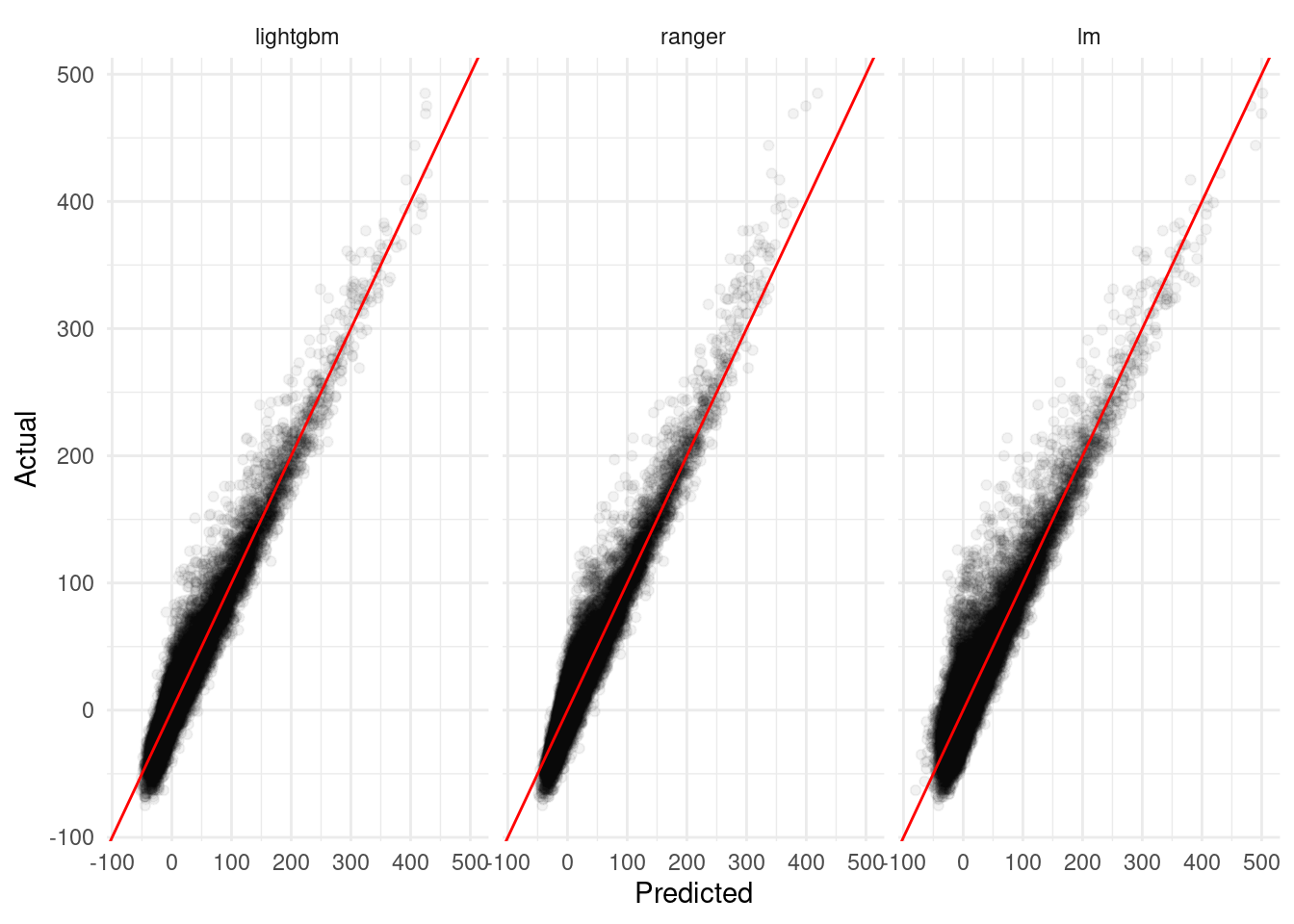

Of course, individual metrics don’t tell the whole story – it can be helpful to look at diagnostic plots of our predictions to try and understand patterns in how our predictions match the data. For instance, “linear models are about four minutes worse on average” is all well and good in the abstract, but graphics like the one below can help us see that – for instance – linear models tend to do a bit worse around 0 minute delays (where most of the data is clustered) while our random forest performs worse on higher extremes:

prediction_plots %>%
  ggplot(aes(value, arr_delay)) +
  geom_point(alpha = 0.05) +
  geom_abline(slope = 1, intercept = 0, color = "red") +
  facet_wrap(~ name) +
  theme_minimal() +
  labs(x = "Predicted",
       y = "Actual")

Model Averaging

With our candidate models in tow, we’re now fully ready to move on to model averaging methods! We’ll walk through basic implementations of three methods (equal weighting, fit-based weights, and model-based estimates) and then evaluate our ensembles at the end.

Equal Weights

Perhaps the most obvious way to average models is to take the simple arithmetic mean of your model predictions. This method presupposes that each of your models are equally good representations of your underlying data; since that isn’t the case here, we might expect this method to not substantially reduce error overall.

A benefit of this method, though, is that implementation takes no time at all:

prediction_values <- prediction_values %>%
  mutate(equal_weight_pred = (lm_pred + ranger_pred + lightgbm_pred) / 3)

Fit-Based Weights

A slightly more involved method is to weight models based on some metric of their performance. Almost any metric with a standard definition across component models can be used (so for instance, AIC or BIC with nested models or MSE and MAPE); as we’ve been using RMSE so far, we’ll use it to weight our errors.

Weighting models based on fit statistics is also relatively easy in the grand scheme of data science. First, calculate the fit statistic for each of your models:

model_rmse <- vapply(
  prediction_values,
  function(x) sqrt(mean((x - prediction_values$arr_delay)^2)),
  numeric(1)
  )[1:3] # Only our 3 component models!
model_rmse
      lm_pred   ranger_pred lightgbm_pred
     14.73962      10.96209      10.40880

Then, depending on your statistic, you may need to take the reciprocal of each value – as lower RMSEs are better, we need to do so here:

rmse_weights <- (1 / (model_rmse))

Lastly, calculate your weights as proportion of the whole set of – you can view these values as the proportion of the ensemble prediction contributed by each component:

rmse_weights <- rmse_weights / sum(rmse_weights)
rmse_weights
      lm_pred   ranger_pred lightgbm_pred
    0.2659099     0.3575422     0.3765479

Making predictions with the ensemble is then relatively easy – just multiply each of your predicted values by their proportion and sum the results:

prediction_values <- prediction_values %>%
  mutate(fit_based_pred = ((lm_pred * rmse_weights["lm_pred"]) +
                             (ranger_pred * rmse_weights["ranger_pred"]) +
                             (lightgbm_pred * rmse_weights["lightgbm_pred"])))

Model-Based Weights

The last averaging method we’ll walk through is a little more involved, but still pretty comprehensible: take your model outputs, turn around, and use them as model inputs.

Our toy example here is a pretty good fit for this method – we already saw in our graphics that a strong linear relationship exists between our predictions and the true value, and this relationship is a little different for each model:

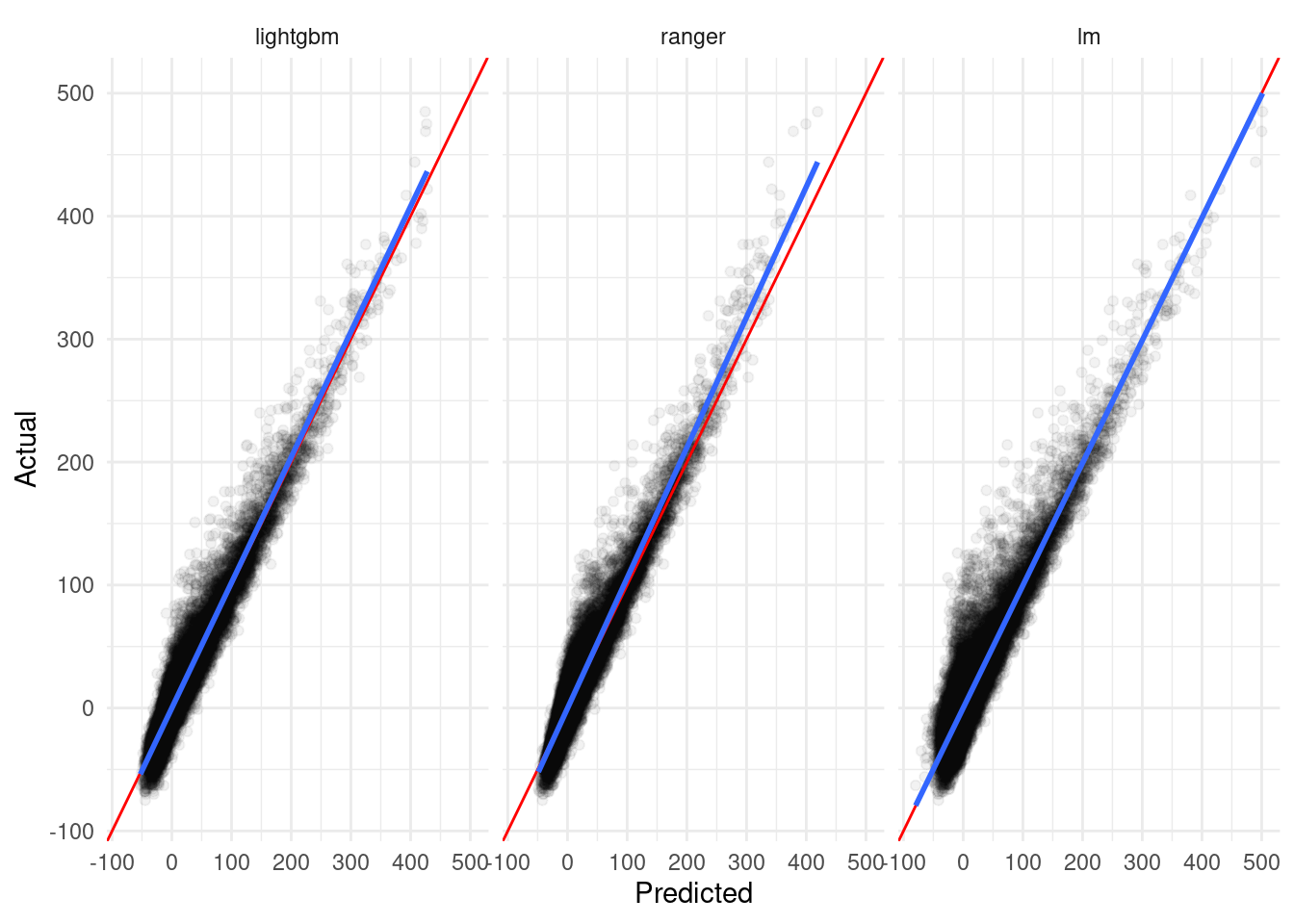

From this plot, we can guess that a linear model combining our component predictions as features will be a good fit2 for averaging these models. To do so, we simply need to build a linear model:

predictions_model <- lm(arr_delay ~ lm_pred * ranger_pred * lightgbm_pred,
                        data = prediction_values)

And then use it to generate predictions just like our original component linear model:

prediction_values$model_based_pred <- predict(
  predictions_model,
  newdata = prediction_values
)

Note that if we saw non-linear relationships between our predictions and true values, we’d want to rely on non-linear methods to average out predictions; it just so happens that our models are already pretty strong fits for the underlying data and can be well-represented with simple linear regression.

How’d We Do?

Now that we have our ensemble models prepared, it’s time to evaluate all of our models out against our testing set!

The first step is to generate predictions for the test set using our component models:

flight_testing$lm_pred <- predict(
  linear_model,
  newdata = flight_testing
)

ranger_predictions <- predict(
    ranger_model,
    data = flight_testing
  )

flight_testing$ranger_pred <- ranger_predictions$predictions

flight_testing$lightgbm_pred <- predict(
  lightgbm_model,
  xtest
)

We can use those predictions to generate our ensemble predictions. Note that we’re still using the weights and models calibrated on the validation data – we (theoretically) shouldn’t know the “true” values for the test set, so we can’t re-weight our averages now!

flight_testing <- flight_testing %>%
  mutate(equal_weight_pred = (lm_pred + ranger_pred + lightgbm_pred) / 3)

flight_testing <- flight_testing %>%
  mutate(fit_based_pred = ((lm_pred * rmse_weights["lm_pred"]) +
                             (ranger_pred * rmse_weights["ranger_pred"]) +
                             (lightgbm_pred * rmse_weights["lightgbm_pred"])))

flight_testing$model_based_pred <- predict(
  predictions_model,
  newdata = flight_testing
)

So how’d we do? Let’s check out the RMSE for each of our models:

prediction_values <- flight_testing %>%
  select(ends_with("pred"), matches("arr_delay"))

prediction_plots <- prediction_values %>%
  pivot_longer(cols = -arr_delay) %>%
  mutate(name = regmatches(name, regexpr(".*(?=_pred)", name, perl = TRUE)),
         resid = value - arr_delay,
         name = factor(name,
                       levels = c("lightgbm", "ranger", "lm",
                                  "model_based", "fit_based", "equal_weight")))

prediction_plots %>%
  group_by(Model = name) %>%
  summarise(RMSE = sqrt(mean(resid^2)), .groups = "drop") %>%
  arrange(RMSE) %>%
  knitr::kable()
Model RMSE
model_based 9.492409
lightgbm 10.290113
ranger 10.968544
fit_based 11.057728
equal_weight 11.311836
lm 14.621943

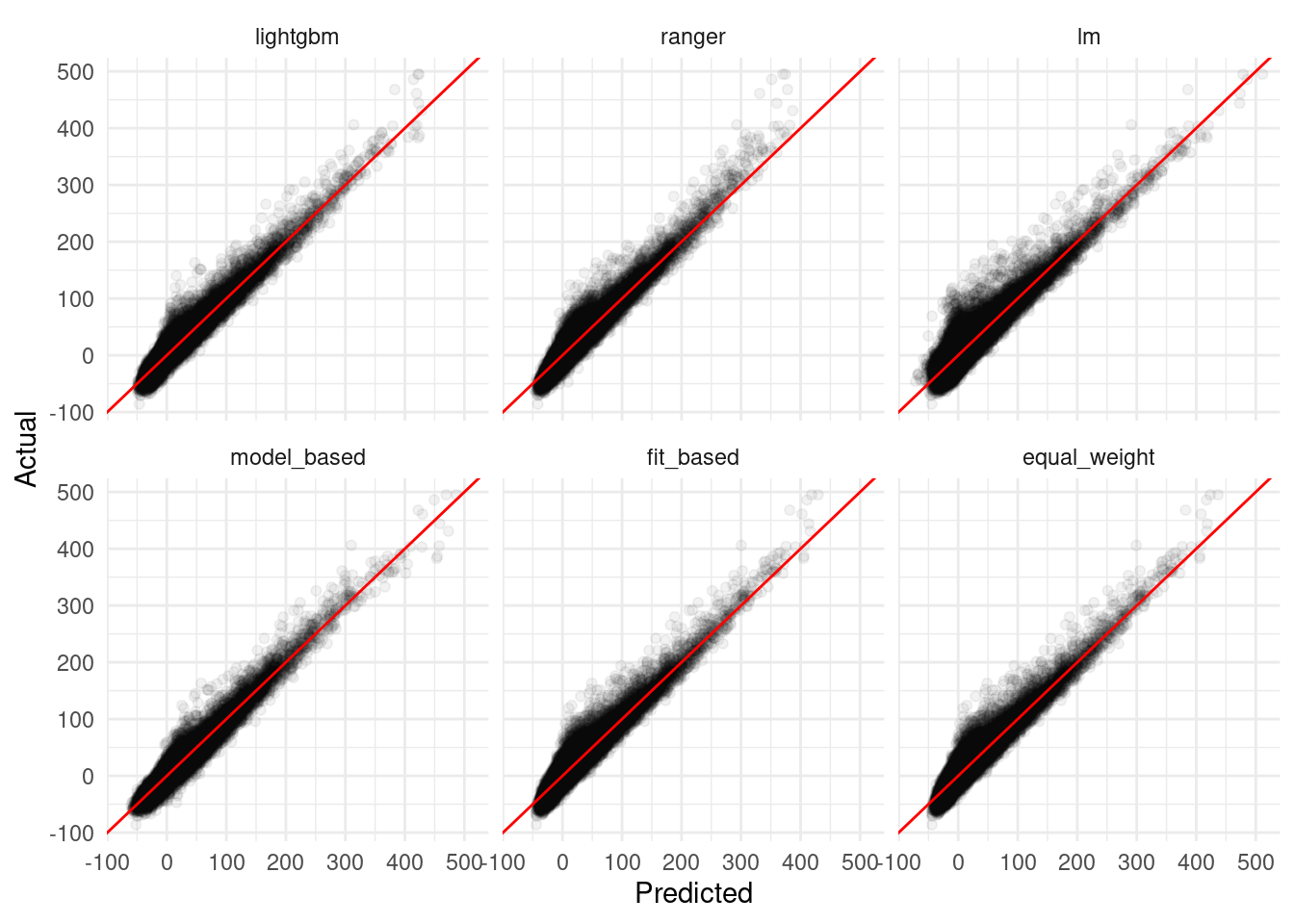

prediction_plots %>%
  ggplot(aes(value, arr_delay)) +
  geom_point(alpha = 0.05) +
  geom_abline(slope = 1, intercept = 0, color = "red") +
  facet_wrap(~ name) +
  theme_minimal() +
  labs(x = "Predicted",
       y = "Actual")

Cool – our model-based ensemble actually performed better than any of the components! While the equal weight and fit-based averages were pretty middle-of-the-road, in other settings these methods can also help to reduce bias in predictions and produce estimates with less variance than any of the component models.

Conclusion

Model averaging can be a powerful tool for reducing model bias and addressing the implicit uncertainty in attempting to pick the “best” model for a situation. While plenty of complex and computationally expensive approaches to averaging exist – and can greatly improve model performance – simpler ensemble methods can provide the same benefits without necessarily incurring the same costs.

Dormann, Carsten F., Justin M. Calabrese, Gurutzeta Guillera-Arroita, Eleni Matechou, Volker Bahn, Kamil Bartoń, Colin M. Beale, et al. 2018. “Model Averaging in Ecology: A Review of Bayesian, Information-Theoretic, and Tactical Approaches for Predictive Inference.” Ecological Monographs 88 (4): 485–504. https://doi.org/https://doi.org/10.1002/ecm.1309.
Wintle, B. A., M. A. McCarthy, C. T. Volinsky, and R. P. Kavanagh. 2003. “The Use of Bayesian Model Averaging to Better Represent Uncertainty in Ecological Models.” Conservation Biology 17 (6): 1579–90. https://doi.org/https://doi.org/10.1111/j.1523-1739.2003.00614.x.

  1. See table 1 of Dormann et. al. for a partial list.↩︎

  2. No pun intended.↩︎


References

Corrections

If you see mistakes or want to suggest changes, please create an issue on the source repository.

Citation

For attribution, please cite this work as

Mahoney (2021, Jan. 18). Mike Mahoney: Model averaging methods: how and why to build ensemble models. Retrieved from https://www.mm218.dev/posts/2021/01/model-averaging/

BibTeX citation

@misc{mahoney2021model,
  author = {Mahoney, Mike},
  title = {Mike Mahoney: Model averaging methods: how and why to build ensemble models},
  url = {https://www.mm218.dev/posts/2021/01/model-averaging/},
  year = {2021}
}
